Drives - Destructive Drives Testing Description - QuickTech Self Boot PC Hardware Diagnostic

QuickTech Self Boot PC Hardware Diagnostic
Drives - Destructive Drives Testing Description -

Inversion Testing
QuickTech Self Boot ’s Inversion Destructive Hard Drive test allows you to check the operation of a system’s hard disk drives and controller to ensure they are functioning properly. This test starts by reading the data that is present on the drive and storing it in the system RAM. Then data is written to these addresses and read back. If no errors are found, the test data will be erased and the original data will be re-written to the drive. Run this test only after backing-up data and only if you suspect damaged sectors. If a defect is detected, the original data will not be written back to the drive.

FAST Inversion Testing

While the standard Inversion Destructive Hard Drive Test performs a sequence of 3 loops, the Fast Inversion Destructive Hard Drive test performs only a single loop for time sensitive testing sessions.

Again, execute this test only after backing-up data and only if you suspect damaged sectors. If a defect is detected or if the test is somehow interrupted, the original data will not be written back to the drive.





Note:

Back up drive data before running any destructive testing.

 Do not shut-down machine during testing.





  1. Select the Inversion test from the Hard Drive Destructive Menu.

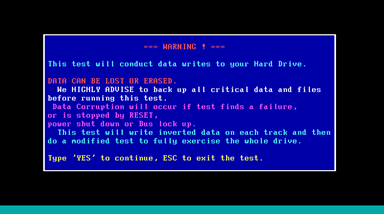

  1. Type YES after reading the warning message.

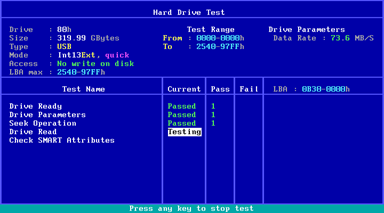

  1. The test will start from the outer ends of the drive and work its way in to Cylinder 0.



This test can take a long time to run on larger size drives (60 gig plus) as it writes each sector, checks and re-writes the original data. If no errors are found, the drive will have all the original data after the test is completed. If errors are found, the data on those tracks will be lost.
